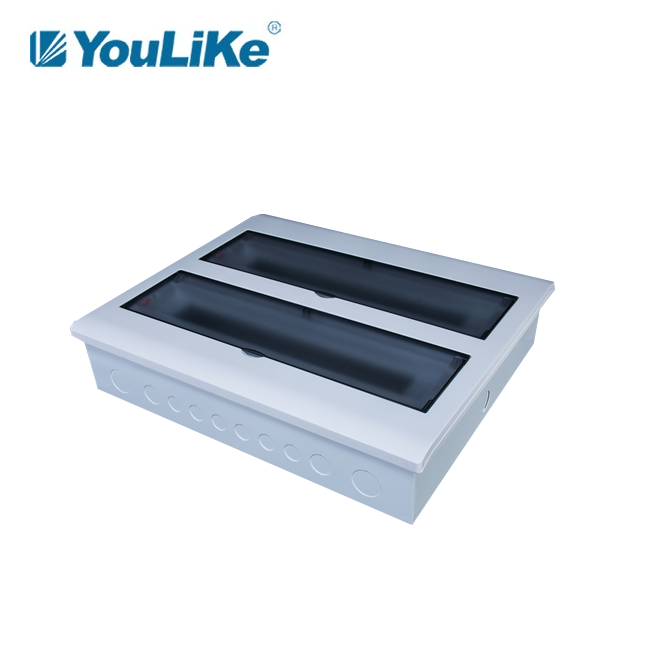

Flush Mount Enclosure Electrical Distribution Box with Din Rail For
MCB
Product Details
RB series It is widely used in the family, high building, house,
station, port, airport, commercial house, hospital,cinema,
enterprises and so on occasion.
1. Material: powder coated steel box and HIPS cover.
2. Distribution box has passed dustproof carried out under rigid
quality standards(IP40).
3. Dustproof distribution boxes are very comlete in specification
and convenient in installation.
4. All plastic parts are without specific flame retardant and
qualified to pass incandescent wire test at 650℃.
Parameters
| Model | RB-A-242 |
| Mounting Type | flush |
| Color | white/with picture |
| Base Box Size | 444*380*90*1.0mm |
| Cover Size | 37.8*405*185mm |
| Carton Size | 468*135*420mm |
| Standard | all countries |
| Approval | CE CCC |
| Adjustable din-rail | move ascend and descend |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | Accept |
Attention Points
1. When the bottom box is embedded with concrete and poured on
site, the bottom box needs to be supported up and down, left and
right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it
is forbidden to block the threaded hole on the right plate with
cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom
box is 20n. m.
4. It is recommended to install the support panel after the wall is
puttying.
Product Details
Company Profle
1. Founded in 2005, it specializes in the production, R & D and
sales of indoor distribution box, multi-media box and power
cabinet.
2. The product design takes safety as the core concept, and has
obtained 33 design patents, 20 utility model patents and 2
invention patents.
3. It has served 1350 leading real estate companies and 1600 panel
builder.
4. In 2015, the sales revenue will exceed 100 million, and the
annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also
gained a certain reputation.
Factory Tour
Packing
Certification
Exhibition
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, it will take 1 to 15 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q3. Can I have a sample order?
A. Yes, we can provide free sample for quality checking, but the
courier charge should be paid by your side.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: What installation method do we use on this film?
A: This film should be used with the wet installation method after
the surface has been cleaned and no oils, grease, wax, or other
contaminants are on the surface.
