Wall Mount Enclosure 32 Way Electrical Distribution Box With Din
Rail For MCB
Product Feature
1. Box to be available for powder coated steel, with 1.0mm
thickness.
2. Cover frame to be available for HIPS material.
3. Door to be available for HIPS material( color white).
4. All plastic parts are without specific flame retardant and
qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends
on material choosed).
6. Protection level reaches IP40.
7. It is used for indoor power distribution mainly for lighting
control for residential and commercial buildings.
8. Din rail to be galvanized steel, with horizontal & vertical
adjustment funtion.
9. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5%
composition.
10. Stainless earthing bolts with warning label.
11.Reinforced structure design to allow higher tensile strength of
plastic cover.
Product Parameters
| Model | RBP-A-232 |
| Ways | 32 way |
| Base Box Size | 354*380*90*1.0mm |
| Cover Size | 378*405*18.5(27) |
| Carton Size | 460*135*420mm |
| Qty | 1 pc |
| Approval | CE CCC |
| Installation Type | flush type |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality
materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number
and meets the national CCC certification standard.

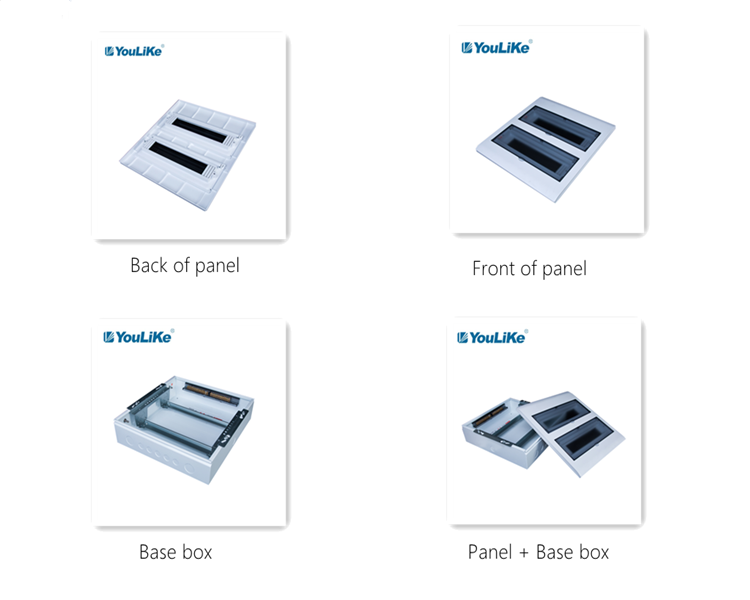

Product Details
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic
process line, powder coating line, plastic injection, assemble
line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and
production efficience.
Market service:
1. yesr service for over 1,800 panel builders and 2,000 real estate
companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100%
original.
2. Product update and new product issue in each 1-2 years.
Certification
Exhibition
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, it will take 1 to 15 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q3. Can I have a sample order?
A. Yes, we can provide free sample for quality checking, but the
courier charge should be paid by your side.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: What installation method do we use on this film?
A: This film should be used with the wet installation method after
the surface has been cleaned and no oils, grease, wax, or other
contaminants are on the surface.
