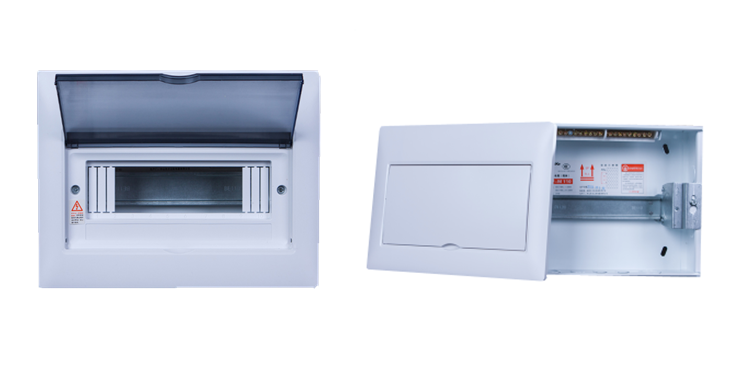

Electrical Consumer Unit IP40 DB Power Distribution Box Waterproof
10 Ways For MCB
Product Description
1. Material: distribution box are made of powder coated steel and
ABS or PC .
2. Select the copper bar with 60% content, which can not crack and
slide the wire continuously, and the conductivity is smooth Add
line cards to better standardize wiring.
3. The grounding screw is made of stainless steel, which is safe
and reliable.
4. All panels are made of brand-new materials, durable and
beautiful.
5. The new hinge structure makes users safer.
6. The box mouth adopts double bending design to facilitate
cleaning and protect the safety of devices.
7. Application: widely used in low voltage distribution networks
for power supplying of consumers and commercial buildings.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance)
≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
| Model | BE-M 110 |
| Color | white |
| Material | powder coated steel + ABS/PC |
| Base Box Size | 275*213*80*1.0mm |
| Cover Size | 276*214*18.5(24.0)mm |
| Rated Voltage | ,AC400v(+/-20%) |
| Rated Frequency | 50-60H |
| Application | residential/commerical |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Product Details
Specifications of BE series, Surface
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | | 7 | 6 |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |
