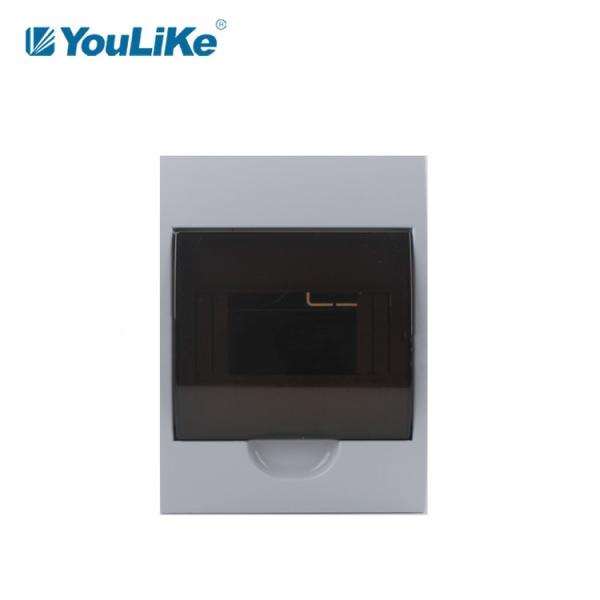

Full Plastic IP65 Waterproof Electrical Panel Box Electrical
Distribution board Outdoor
Product Features
1. Panel is the ABS material for engineering , high strength ,
never change color , the transparent materia is PC .
2. Cover push - type opening and closing
3. Face covering of the distribution box adopts the push - type
opening and closing mode , the face mask can be opened by pressing
lightly , the self - locking positioning hinge structure is
provided when opening.
4. Wiring design of the power distribution box.
5. The guide rail support plate can be lifted to the higest movable
point , it is no longer limited by the narrrow space when
installing the wire . To install easily , the switch of the
distribution box is set up with the wire grooves and wire pipe
exitholes , whcih are easy to use for a variety of wire grooves and
wire pipes.
Product Design
Overall design: unique corner design, with three-dimensional
feeling of space.
Internal design: the guide rail for fixing the circuit breaker is
installed, which is more convenient.
Back design: surface mounted shell, more convenient installation,
smooth surface, no miscellaneous color spots.
Side design: knock off the side hole when in use and waterproof
when not in use.
Application
TSM series is used for indoor power distribution mainly for
lighting control for residential and commercial buildings.
Product Parameters
| Model | TSM-4 |
| Mounting Type | surface mounting |
| Box Size | 112*200*95mm |
| Accessories | bolt, din rail , terminal |
| Application | residential and commercial buildings |
| Approval | CE |
| Circuit Breaker Rail | galvanised Steel |
| Surface Treatment | coated |
| Package | in color box or neutral carton |
| OEM | offered |
Product Image
Specifications of TSM series, Surface/Flush
| Number | Model | Way | Box size(surface) | Box size(flush) | Cartons |
| L*H*T (mm) | L*H*T (mm) | pcs |
#1 | TSM2-3 | 2-3way | 95*150*60 | 95*150*60 | 50 |
#2 | TSM4 | 4way | 112*200*95 | 136*221*90 | 30 |
#3 | TSM6 | 6way | 148*200*95 | 172*221*90 | 30 |
#4 | TSM8 | 8way | 184*200*95 | 208*221*90 | 30/20 |
| #5 | TSM10 | 10way | 222*200*95 | 246*221*90 | 20 |
| #6 | TSM12 | 12way | 256*200*95 | 278*221*90 | 20 |
| #7 | TSM15 | 15way | 310*200*95 | 334*221*90 | 15 |
| #8 | TSM18 | 18way | 360*200*100 | 398*251*100 | 15/10 |
| #9 | TSM24 | 24way | 270*328*100 | 300*350*100 | 10 |
| #10 | TSM36 | 36way | 270*460*100 | 300*482*100 | 5 |
| #11 | TSM45 | 45way | 325*470*100 | 365*505*110 | 5 |
