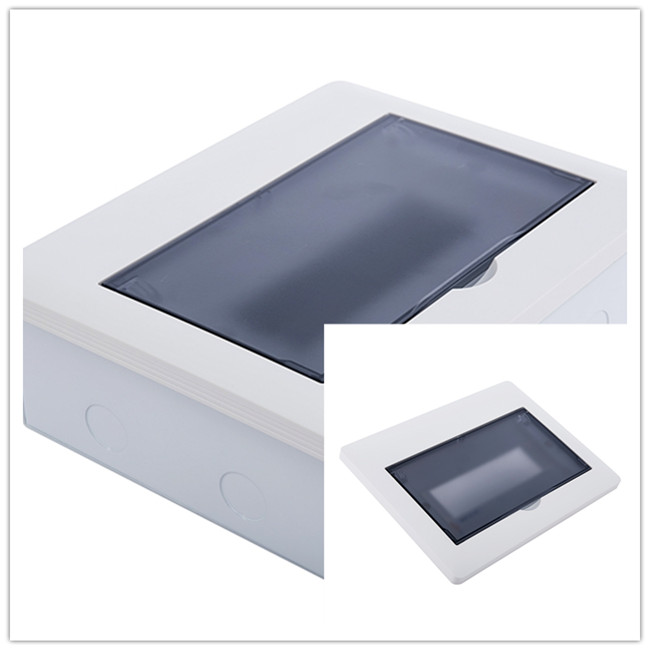

HIPS Cover 10 Way MCB Box Mini Circuit Breaker Electrical
Distribution Box
Product Features
1. Base box material: one row for 0.8mm powder coated steel, two
row for 1.0mm powder coated steel .cover for HIPS material.
2. Safe and full material copper terminals.
3. Adjustable din-rail:move ascend and descend.
4. Ultra-large space box for moving and easy wiring.
5. Flush mounting and surface mounting available.
6. Function of Distribution box:protect MCB and other devices.
7. Application: widely used in low voltage distribution networks
for power supplying of consumers and commercial buildings.
Technology
1. The new hinge structure adopts metal shaft core, which is
stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in
the ideal position to ensure that the force of opening and closing
the movable door is moderate, the rotation is smooth and there is
no abnormal noise.
3. The internal guide rail bracket is composed of all metal parts,
with lifting and rotation adjustment function and pre suspension
function.
4. The grounding screw is made of stainless steel, the stud is
uncoated and the grounding is more sufficient.
Product Parameter
| Ways | 10 way |
| Color | white |
| Base Box Size | 246*192*80*0.8mm |
| Cover Size | 268*210*17.5(26)mm |
| Mounting Type | flush |
| Ambient temperature(℃) | -5~+40,max.95% humidity |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| Certificate | CCC.CE |
Specifications of BL series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| BLP-A 110 | 10way | 268*210*17.5(26) | 246*192*80*0.8 | 6*10.4 | 6 | 5 | 5 |
| BLP-A 113 | 13way | 322*210*17.5(26) | 300*192*80*0.8 | 6*10.4 | 6 | 5 | 6 |
| BLP-A 116 | 16way | 376*210*17.5(26) | 354*192*80*0.8 | 6*10.4 | 8 | 7 | 7 |
| BLP-A 118 | 18way | 412*210*17.5(26) | 390*192*80*0.8 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 121 | 21way | 466*210*17.5(26) | 444*192*80*0.8 | 6*10.4 | 11 | 10 | 10 |
| BLP-A 124 | 24way | 520*250*17.5(26.5) | 498*230*90*1.0 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 226 | 26way | 322*405*17.5(28.3) | 300*380*90*1.0 | 6*10.4 | 13 | 12 | 6 |
| BLP-A 232 | 32way | 375*405*17.5(28.3) | 354*380*90*1.0 | 6*10.4 | 13 | 12 | 7 |
| BLP-A 242 | 42way | 466*405*17.5(28.3) | 444*380*90*1.0 | 6*10.4 | 18 | 15 | 10 |
Product Details
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic
process line, powder coating line, plastic injection, assemble
line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and
production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate
companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100%
original.
2. Product update and new product issue in each 1-2 years.
Our Factory
Certifications
Exhibitions
Packaging & Shipping
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, it will take 1 to 15 days after receiving your
advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q3. Can I have a sample order?
A. Yes, we can provide free sample for quality checking, but the
courier charge should be paid by your side.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: What installation method do we use on this film?
A: This film should be used with the wet installation method after
the surface has been cleaned and no oils, grease, wax, or other
contaminants are on the surface.
