ABS Cover MCB Distribution Box 4 Way Electrical MCB Box With
Transparent Window
Product Feature
Flush type and surface distribution boxes/distribution boards are
mainly used in the circuit Of AC 50Hz, rated voltage 220V/380V, and
acted to install the modular combination equipment. It is widely
used in the family, high building, house, station, port, airport,
commercial house, hospital,cinema, enterprises and so on occasion.
1. Material: PC cover and powder coated steel enclosure.
2. Select the copper bar with 60% content, which can not crack and
slide the wire continuously, and the conductivity is smooth Add
line cards to better standardize wiring.
3. The grounding screw is made of stainless steel, which is safe
and reliable.
4. All panels are made of brand-new materials, durable and
beautiful.
5. The new hinge structure makes users safer.
6. The box mouth adopts double bending design to facilitate
cleaning and protect the safety of devices.
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance)
≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Product Parameters
| Series | BE-M 104 |
| Ways | 4way |
| Color | white |
| Material | powder coated steel + ABS |
| Base Box Size | 168×164×80×1.0mm |
| Cover Size | 168×164×16.5(22.0)mm |
| Approval | CE,CCC |
| Accessories | din rail + bolt+terminal |
| Installation Type | surface |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| OEM | accept |
Specifications of BE series, Surface
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | | 7 | 6 |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |

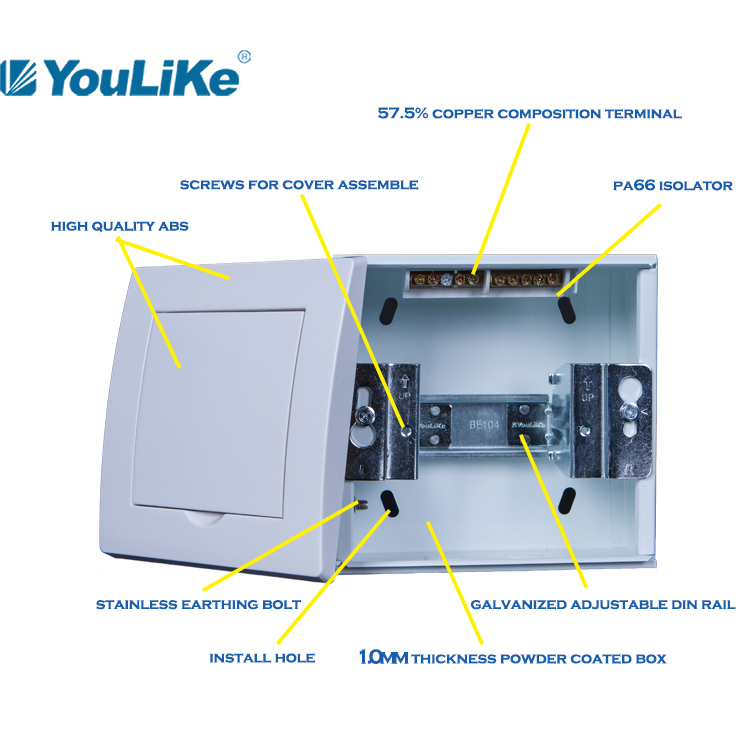

Product Details Demonstration
