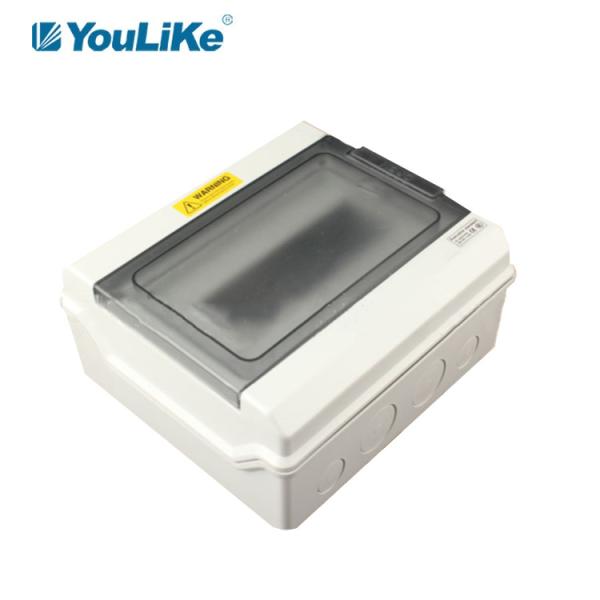

6 Way 8 Way 12Way IP65 Outdoor Waterproof Weatherproof Control
Panel Distribution Box MCB
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality
materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number
and meets the national CCC certification standard.
Product Feature
1. Box material: ABS
2. Cover frame material: PC
4. All plastic parts : without specific flame retardant.
5. Pastic can be customized to flame retardant (grade V1~V0 depends
on material choosed).
Product Design
Overall design: unique corner design, with three-dimensional
feeling of space.
Internal design: the guide rail for fixing the circuit breaker is
installed, which is more convenient.
Back design: surface mounted shell, more convenient installation,
smooth surface, no miscellaneous color spots.
Side design: knock off the side hole when in use and waterproof
when not in use.
Specifications of G series, Surface
| Number | Model | Way | Box size | Weight | Minimum package |
| L*H*T (mm) | kg | pcs |
#1 | G-4 | 4way | 200*110*90 | 1.1 | 1 |
#2 | G-6 | 6way | 200*165*100 | 1.1 | 1 |
#3 | G-9 | 9way | 210*200*100 | 1.5 | 1 |
#4 | G-12 | 12way | 270*230*110 | 1.5 | 1 |
| #5 | G-18 | 18way | 380*230*110 | 1.5 | 1 |
| #6 | G-24 | 24way | 380*230*110 | 1.5 | 1 |
| #7 | G-36 | 36way | 380*380*110 | 1.7 | 1 |
Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| G-4 | 205*115*95 | 0.0022 | 1 | 1.3 | |
| G-6 | 205*168*105 | 0.0036 | 1 | 1.3 | |
| G-9 | 215*205*105 | 0.0046 | 1 | 1.8 | |
| G-12 | 275*235*115 | 0.0074 | 1 | 1.8 | |
| G-18 | 385*235*115 | 0.0104 | 1 | 1.8 | |
| G-24 | 385*235*115 | 0.0104 | 1 | 1.8 | |
| G-36 | 385*385*115 | 0.0170 | 1 | 2.1 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate
thickness).
2. Order arrangement
* ≤15 days stable delivery.
* specific MOQ.
* multiple payment terms.
* order status update.
3. Additional service
* 7X24 respondence service.
* on site service.
* quality discrepancy handle.
* accessories coordination.
