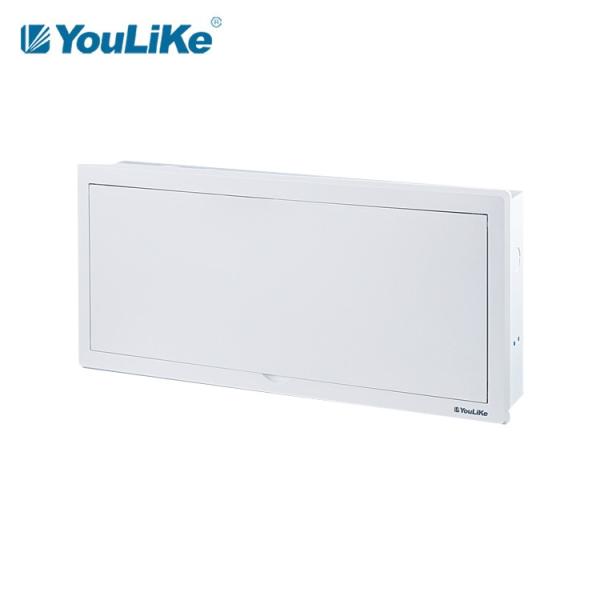

HIPS Enclosure Distribution Board Electrical Equipment Flush
Mounted Box Power Distribution Box Board
Quality Control
1. Raw matreial
* steel plate from leading steel companies.
* brand new plastic.
* stable supply chain.
2. Components
* safe and secure earth system.
* 57.5% brass composition terminal.
* multi-folded boarder.
* 1,200+ times patent hinge.
* wire clamp.
3. Inspection
* material analysis.
* inspection for individual process.
* semi-final product inspection.
* final product inspection.
Technology
1. The new hinge structure adopts metal shaft core, which is
stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in
the ideal position to ensure that the force of opening and closing
the movable door is moderate, the rotation is smooth and there is
no abnormal noise.
3. The internal guide rail bracket is composed of all metal parts,
with lifting and rotation adjustment function and pre suspension
function.
4. The grounding screw is made of stainless steel, the stud is
uncoated and the grounding is more sufficient.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site
pouring, the surrounding support shall be made inside the bottom
box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom
box is 18N. M.
3. It is recommended to install the support surface after the wall
is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not
equipped with earthing.
Specifications of P3 series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
P3-A 112 | 12way | 312×230×10(27.5) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
P3-A 115 | 15way | 366×240×10(27.5) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
P3-A 118 | 18way | 420×240×10(27.5) | 400×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
P3-A 121 | 21way | 474×240×10(27.5) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
P3-A 124 | 24way | 528×250×10(27.5) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
P3-A 226 | 26way | 348×400×10(27.5) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
P3-A 232 | 32way | 402×400×10(27.5) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
P3-A 242 | 42way | 492×400×10(27.5) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
Office Area Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| P3-A 112 | 655×300×385 | 0.0756 | 5 | 17.10 | |
| P3-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P3-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P3-A 121 | 655×310×545 | 0.1107 | 5 | 11.65 | |
| P3-A 124 | 655×320×600 | 0.1258 | 5 | 12.40 | |
| P3-A 226 | 460×135×385 | 0.0240 | 1 | 5.40 | |
| P3-A 232 | 460×135×440 | 0.0273 | 1 | 6.70 | |
| P3-A 242 | 460×135×530 | 0.0329 | 1 | 3.60 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
Application
P3 series is used for indoor power distribution mainly for lighting
control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical
adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5%
composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of
plastic cover.
5. Metal metal spring plate to provide extra service life of
plastic hinges.
