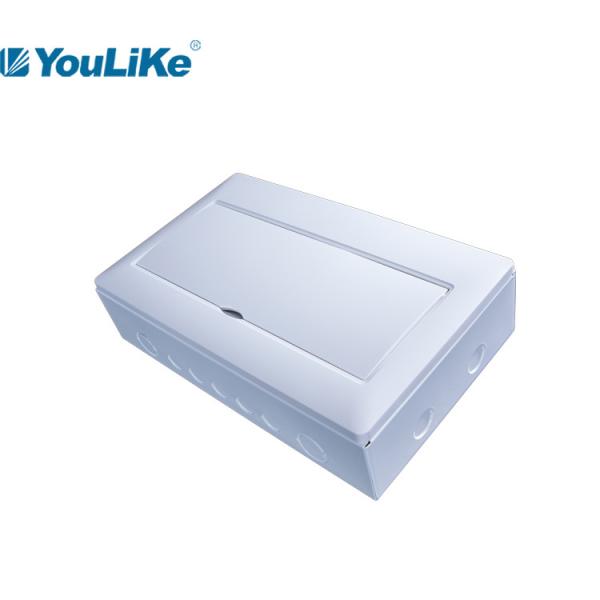

Electrical Plastic Distribution Box Protection Level 40 Surface
Mounted Switch Box 14 Way Db Box
Quality Assurance
1. Official quality assurance,two-year warranty.
2. The plate thickness meets the national standard without error.
3. The materials used in the product are all new and high-quality
materials,and there are no waste recycled materials.
4. The product has China Compulsory Product Certification number
and meets the national CCC certification standard.
Safety Qualification Elements
1. Copper bar:smooth conduction, safe and reliable.
2. Wiring :wiring specification, standard safety.
3. Grounding:stainless steel, safe and reliable.
4. Raw materials:brand new plastic, durable and beautiful.
Company Profile
1. Founded in 2005, it specializes in the production, R & D and
sales of indoor distribution box, multi-media box and power
cabinet.
2. The product design takes safety as the core concept, and has
obtained 33 design patents, 20 utility model patents and 2
invention patents.
3. It has served 1350 leading real estate companies and 1600 panel
builder.
4. In 2015, the sales revenue will exceed 100 million, and the
annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also
gained a certain reputation.
Specifications of BE series, Surface
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| BEP-M 104 | 4way | 168×164×16.5(22.0) | 168×164×80×1.0 | 6*10 | 4 | 5 | 2 |
| BEP-M 107 | 7way | 222×214×18.5(24.0) | 221×213×80×1.0 | 6*10 | | 7 | 6 |
| BEP-M 110 | 10way | 276×214×18.5(24.0) | 275×213×80×1.0 | 6*10 | 8 | 7 | 7 |
| BEP-M 112 | 12way | 312×214×18.5(24.0) | 311×213×80×1.0 | 6*10 | 8 | 9 | 8 |
| BEP-M 114 | 14way | 348×214×18.5(24.0) | 347×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 116 | 16way | 384×214×18.5(24.0) | 383×213×80×1.0 | 6*10 | 11 | 10 | 9 |
| BEP-M 118 | 18way | 420×214×18.5(24.0) | 419×213×80×1.0 | 6*10 | 13 | 12 | 10 |
| BEP-M 120 | 20way | 456×214×18.5(24.0) | 455×213×80×1.0 | 6*10 | 13 | 12 | 12 |
| BEP-M 228 | 28way | 351×381×19(26.5) | 350×380×95×1.2 | 6.4*12 | 16 | 15 | 9 |
| BEP-M 240 | 40way | 459×381×19(26.5) | 458×380×95×1.2 | 6.4*12 | 18 | 17 | 12 |
Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| BEP-M 104 | 525*215*355 | 0.0401 | 10 | 9.58 | |
| BEP-M 107 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BEP-M 110 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BEP-M 112 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BEP-M 114 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BEP-M 116 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BEP-M 118 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BEP-M 120 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BEP-M 228 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BEP-M 240 | 510*160*460 | 0.0376 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
After-sales Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate
thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
