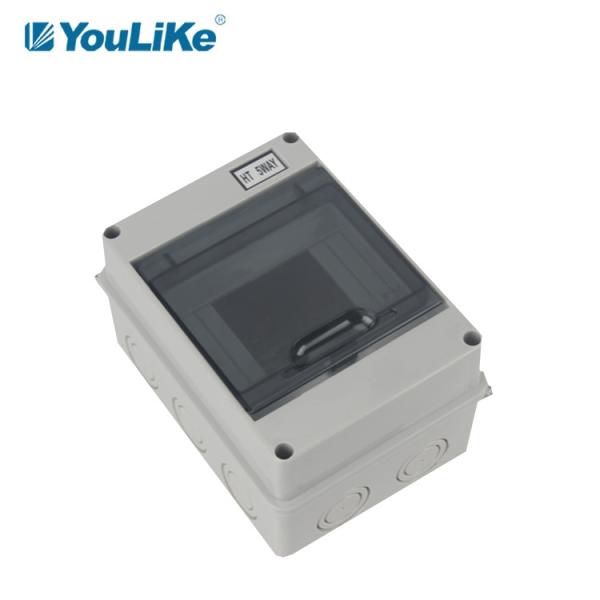

New Type Solid Cover Electrical PC Waterproof Box Plastic Ip65
Power Distribution Box
Application
HT series 2way 5way 8way 12way 15way 18way 24way Waterproof
Distribution Box is mainly used in outdoor areas, such as EV
chargers, Solar PV fields or other outdoor projects.
Product Features
1. Panel is the ABS material for engineering , high strength , never
change color , the transparent materia is PC .
2. Cover push - type opening and closing
3. Face covering of the distribution box adopts the push - type
opening and closing mode , the face mask can be opened by pressing
lightly , the self - locking positioning hinge structure is
provided when opening.
4. Wiring design of the power distribution box.
5. The guide rail support plate can be lifted to the higest movable
point , it is no longer limited by the narrrow space when
installing the wire . To install easily , the switch of the
distribution box is set up with the wire grooves and wire pipe
exitholes , whcih are easy to use for a variety of wire grooves and
wire pipes.
Specifications of HT series, Surface
| Number | Model | Way | Box size | Weight | Knockouts |
| L*H*T (mm) | kg | one side qty |
#1 | HT-5 | 5way | 120*160*95 | 0.34 | |
#2 | HT-8 | 8way | 200*155*95 | 0.53 | |
#3 | HT-12 | 12way | 250*195*110 | 0.84 | |
#4 | HT-15 | 15way | 310*195*110 | 0.9 | |
| #5 | HT-18 | 18way | 365*195*110 | 1.07 | |
| #6 | HT-24 | 24way | 360*280*110 | 1.05 | |
Company Overview Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| HT-5 | 125*165*100 | 0.0020 | 1 | 0.34 | |
| HT-8 | 205*160*100 | 0.0032 | 1 | 0.53 | |
| HT-12 | 255*200*115 | 0.0058 | 1 | 0.84 | |
| HT-15 | 320*200*115 | 0.0073 | 1 | 0.9 | |
| HT-18 | 370*200*115 | 0.0085 | 1 | 1.07 | |
| HT-24 | 365*285*115 | 0.0119 | 1 | 1.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
Company Information
Production Capacity
1. 30,000 square meters production center, including metallic
process line, powder coating line, plastic injection, assemble
line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and
production efficience.
Market service
1. yesr service for over 1,800 panel builders and 2,000 real estate
companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability
1. Over 65 national patents, to ensure every single product is 100%
original.
2. Product update and new product issue in each 1-2 years.
