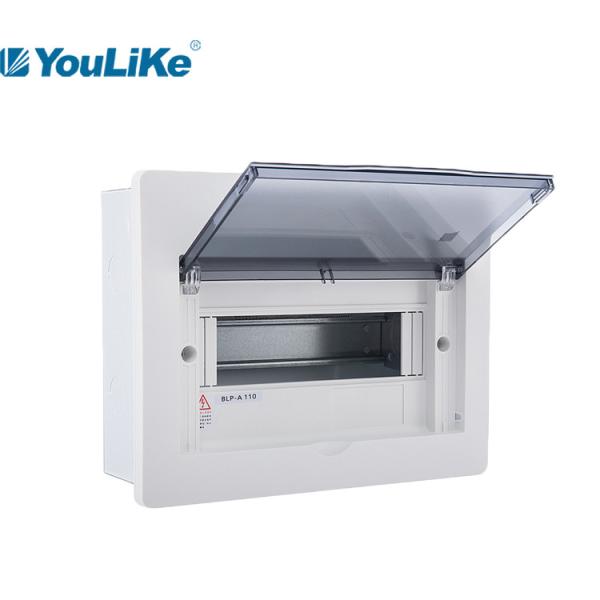

Din Rail Flush Mounted Outdoor MCB Electric 10 Way Electrical Power
Distribution Box
Product Advantage
1. Select the copper bar with 60% content, which can not crack and
slide the wire continuously, and the conductivity is smooth Add
line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe
and reliable.
3. All panels are made of brand-new materials, durable and
beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate
cleaning and protect the safety of devices.
Quality Assurance
1. national CCC certification standard
2. The plate thickness meets the national standard without error
3. All brand-new high-quality materials
4. The protection level reaches IP40
Company Profile
1. Founded in 2005, it specializes in the production, R & D and
sales of indoor distribution box, multi-media box and power
cabinet.
2. The product design takes safety as the core concept, and has
obtained 33 design patents, 20 utility model patents and 2
invention patents.
3. It has served 1350 leading real estate companies and 1600 panel
builder.
4. In 2015, the sales revenue will exceed 100 million, and the
annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also
gained a certain reputation.
Specifications of BL series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| BLP-A 110 | 10way | 268*210*17.5(26) | 246*192*80*0.8 | 6*10.4 | 6 | 5 | 5 |
| BLP-A 113 | 13way | 322*210*17.5(26) | 300*192*80*0.8 | 6*10.4 | 6 | 5 | 6 |
| BLP-A 116 | 16way | 376*210*17.5(26) | 354*192*80*0.8 | 6*10.4 | 8 | 7 | 7 |
| BLP-A 118 | 18way | 412*210*17.5(26) | 390*192*80*0.8 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 121 | 21way | 466*210*17.5(26) | 444*192*80*0.8 | 6*10.4 | 11 | 10 | 10 |
| BLP-A 124 | 24way | 520*250*17.5(26.5) | 498*230*90*1.0 | 6*10.4 | 11 | 10 | 8 |
| BLP-A 226 | 26way | 322*405*17.5(28.3) | 300*380*90*1.0 | 6*10.4 | 13 | 12 | 6 |
| BLP-A 232 | 32way | 375*405*17.5(28.3) | 354*380*90*1.0 | 6*10.4 | 13 | 12 | 7 |
| BLP-A 242 | 42way | 466*405*17.5(28.3) | 444*380*90*1.0 | 6*10.4 | 18 | 15 | 10 |
Product Details Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| BLP-A 110 | 525*290*455 | 0.0693 | 10 | 14.66 | |
| BLP-A 113 | 525*345*455 | 0.0825 | 10 | 17.10 | |
| BLP-A 116 | 525*235*405 | 0.0450 | 5 | 9.25 | |
| BLP-A 118 | 525*235*440 | 0.0543 | 5 | 10.20 | |
| BLP-A 121 | 525*235*495 | 0.0611 | 5 | 11.65 | |
| BLP-A 124 | 545*240*280 | 0.0367 | 2 | 6.70 | |
| BLP-A 226 | 460*135*385 | 0.0239 | 1 | 3.60 | |
| BLP-A 232 | 455*160*425 | 0.0310 | 1 | 4.05 | |
| BLP-A 242 | 510*160*460 | 0.0376 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
