IP30 220V Power Distribution Box

    Buy cheap IP30 220V Power Distribution Box from wholesalers

    Buy cheap IP30 220V Power Distribution Box from wholesalers
    • Buy cheap IP30 220V Power Distribution Box from wholesalers
    • Buy cheap IP30 220V Power Distribution Box from wholesalers
    • Buy cheap IP30 220V Power Distribution Box from wholesalers
    • Buy cheap IP30 220V Power Distribution Box from wholesalers

    IP30 220V Power Distribution Box

    Ask Lasest Price
    Brand Name : YOULIKE
    Model Number : DMT-R
    Certification : CCC
    Price : negotiable
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 400000pcs/month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

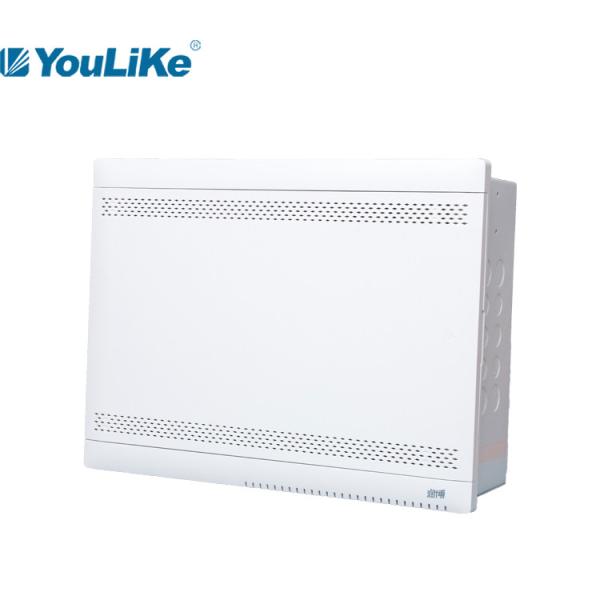

    IP30 220V Power Distribution Box

    Product Characteristics

    1. Box to powder coated steel with dual folding process, to ensure its high tensile strength.

    2. Cover to be HIPS material,qualified to pass incandescent wire test at 650℃ .


    Product description

    Flush mounting type, with radiating design cover, 4 different sizes available.

    Materials: box to be powder coated steel, cover to be HIPS

    Optional ccessaries: TV spliter, telephone spliter, internet spliter, rounter, modem, power adaptor.


    Specification

    ModelsCover sizeBox sizeKnock-outs arrangementModules quantity
    (mm)(mm)
    DMT-RE

    325*420*15.5(21.5)

    300*200*100*0.8

    2-φ26,12-φ21

    3U

    DMT-RA345*270*17.5(23.5)320*250*100*0.84-φ26,14-φ21

    4U

    DMT-RB375*320*17.5(23.5)350*300*100*0.84-φ26,16-φ21

    4U

    DMT-RC425*320*20.0(28.0)400*300*100*0.84-φ26,20-φ21

    4U


    Application

    Used for apartment network distribution, can be assembled with routers, modem, TV spliter, telephone spliter, to distribut signal to different rooms. Wireless devices can be applicable also.


    Installation demonstration

    IP30 220V Power Distribution Box


    Packing

    ModelCarton sizeVolume/ctnPcs/ctnCalculated weight(kgs/ctn)
    mmnet weightgross weight
    DMT-RE385*150*2900.0171
    DMT-RA405*170*3400.0241
    DMT-RB440*170*3900.0301
    DMT-RC485*170*3900.0331

    Remarks: #1. Both customized color box or neutral box is available.

    #2. In case customized color box is required, there is a MOQ≥1000pcs/each size.

    #3. Customized logo print on product is available with no additional charge.
