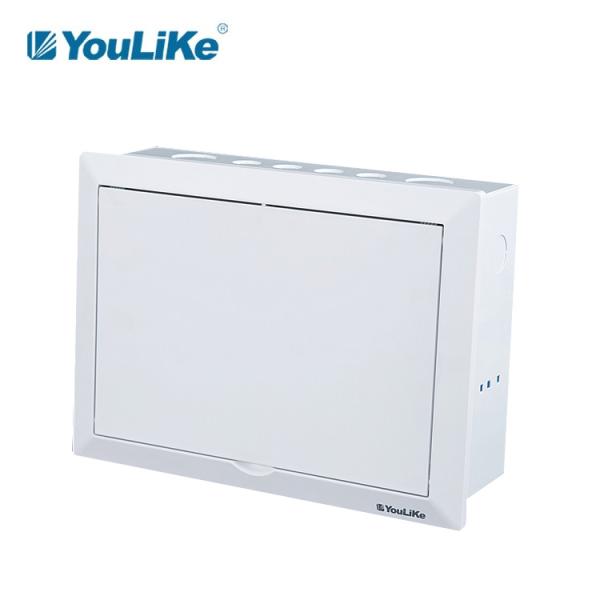

Low Voltage 12 Way Flush Mounted Protection Level 40 Electrical
Power Metal Distribution Box
Product Characteristics
1. Box to be available for powder coated steel, 1.0mm for
1&2row, 1.2mm for3rows.
2. Cover frame to be available for ABS material.
3. Door to be available for ABS, color white.
4. All plastic parts are without specific flame retardant and
qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends
on material choosed).
Plastic Parts Test Result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance)
≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Installation Precautions
1. When the bottom box is embedded with concrete for on-site
pouring, the surrounding support shall be made inside the bottom
box to prevent the bottom box from deformation.
2. The maximum bearing torque of the earthing bolt on the bottom
box is 18N. M.
3. It is recommended to install the support surface after the wall
is puttying.
4. The bracket is attached to the wall for installation.
5. The installation of the box must be grounded, and the box is not
equipped with earthing.
Specifications of P5 series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
P5-A 112 | 12way | 312*230*15.5(31.3) | 292×210×90×1.0 | 6×10.4 | 8 | 7 | 6 |
P5-A 115 | 15way | 366×240×15.5(31.3) | 346×220×90×1.0 | 6×10.4 | 8 | 7 | 7 |
P5-A 118 | 18way | 420×240×15.5(31.3) | 00×220×90×1.0 | 6×10.4 | 11 | 10 | 9 |
P5-A 121 | 21way | 474×240×15.5(31.3) | 454×220×90×1.0 | 6×10.4 | 11 | 10 | 10 |
P5-A 124 | 24way | 528×250×15.5(31.3) | 508×230×90×1.0 | 6×10.4 | 13 | 12 | 10 |
P5-A 226 | 26way | 348×400×16.5(32.8) | 328×380×90×1.0 | 6×10.4 | 13 | 12 | 6 |
P5-A 232 | 32way | 402×400×16.5(32.8) | 382×380×90×1.0 | 6.4×12 | 16 | 15 | 7 |
P5-A 242 | 42way | 492×400×16.5(32.8) | 472×380×90×1.0 | 6.4×12 | 18 | 17 | 10 |
P5-A 354 | 54way | 448×604×17(33.5) | 424×580×100×1.2 | 6.4×12 | 2*13 | 2*12 | 9 |
Company Overview Demonstration
Application
P5 series mainly used for indoor lighting control for residential
and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical
adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 6%
composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of
plastic cover.
5. Plastic wire clamps is equiped below the din rail.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| P5-A 112 | 655×300×385 | 0.0756 | 10 | 17.10 | |
| P5-A 115 | 655×310×440 | 0.0893 | 5 | 9.25 | |
| P5-A 118 | 655×310×495 | 0.1005 | 5 | 10.20 | |
| P5-A 121 | 655×310×545 | 0.1106 | 5 | 11.65 | |
| P5-A 124 | 655×320×600 | 0.1257 | | 12.40 | |
| P5-A 226 | 460×135×415 | 0.0257 | | 5.40 | |
| P5-A 232 | 460×135×470 | 0.0291 | 1 | 6.70 | |
| P5-A 242 | 550×135×465 | 0.0345 | 1 | 3.60 | |
| P5-A 354 | 665×155×515 | 0.0530 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
