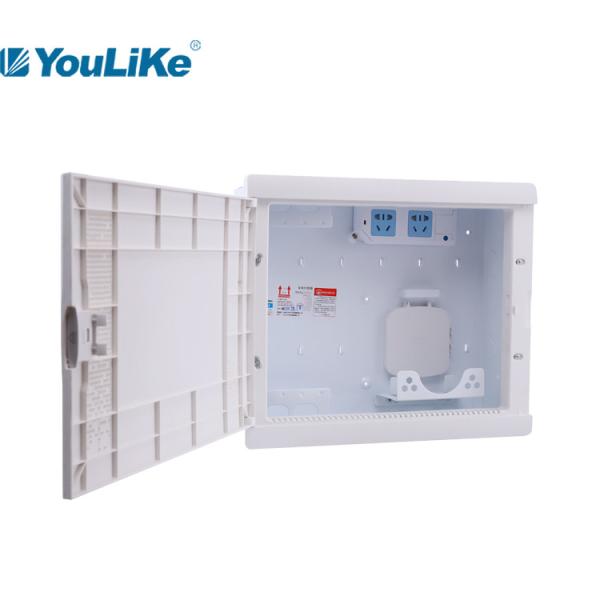

IP30 Dust-Proof And Anti-Corrosion Multimedia Db Box High-Quality
Durable Socket Box
Product Characteristics
1. Box to be available for powder coated steel, 0.8mm for DMT-T,
1.0mm for DMT-G.
2. Cover to be available for ABS (DMT-G) and HIPS material (DMT-T).
3. In case golden color needed, only HIPS available.
4. All plastic parts are without specific flame retardant and
qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends
on material choosed).
Attention Points
1. When the bottom box is embedded with concrete and poured on
site, the bottom box needs to be supported up and down, left and
right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it
is forbidden to block the threaded hole on the right plate with
cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom
box is 20n. m.
4. It is recommended to install the support panel after the wall is
puttying.
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance)
≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Specifications of DMT-T/G series, Flush
| Model | Cover material | Cover size | Box size | Max. Module install capacity | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | one side qty |
| DMT-TS | HIPS | 345*270*16(31) | 325*250*100*0.8 | 3U | 16 |
| DMT-GS | ABS | 325*250*120*1.0 | 4U | 18 |
| DMT-TM | HIPS | 375*320*16(31) | 350*300*100*0.8 | 4U | 17 |
| DMT-GM | ABS | 350*300*120*1.0 | 4U | 20 |
| DMT-TL | HIPS | 425*320*16(31) | 400*300*100*0.8 | 4U | 19 |
| DMT-GL | ABS | 400*300*120*1.0 | 4U | 22 |
Product Details Demonstration
Application
DMT-T/G series is used for indoor TV, telephone and network
distribution for house/apartment usage.
1. ONU mounting bracket is powder coated steel.
2. Optical cable tray is used for optical cable wiring isolation
from other components.
3. PDU is as per CCC standard and optionla for clients in case it
is unworkable.
4. Reinforced structure design to allow higher tensile strength of
plastic cover.
5. Module mounting stand is plastic and modules to be fix by
screws.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| DMT-TS | 405*150*340 | 0.0207 | 1 | 9.58 | |
| DMT-TM | 440*150*390 | 0.0258 | 1 | 14.66 | |
| DMT-TL | 485*150*390 | 0.0284 | 1 | 17.10 | |
| DMT-GS | 405*170*340 | 0.0234 | 1 | 9.25 | |
| DMT-GM | 440*170*390 | 0.0292 | 1 | 10.20 | |
| DMT-GL | 485*170*390 | 0.0322 | 1 | 11.65 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
