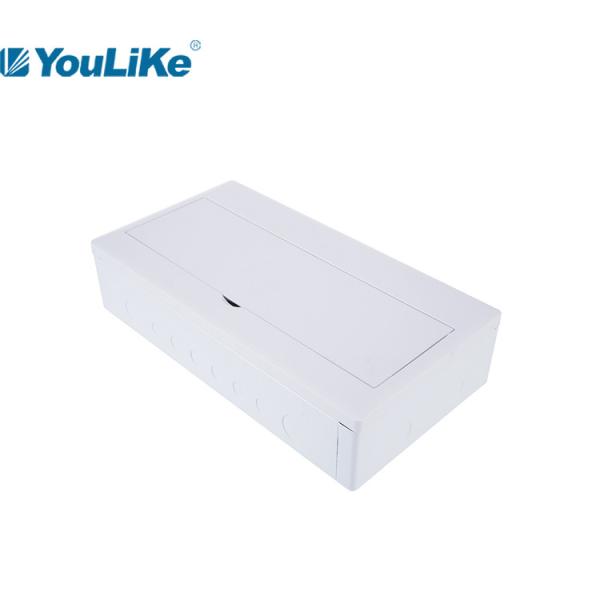

OEM Plastic Enclosure Protection Level 40 Electrical Power
Distribution Box Pvc Mcb Box
Application
1. The product can meet the comprehensive needs of modern
residential buildings for communication and family intelligent
system, and the interior space of the box is very strong.
2. Support the installation of WiFi function wireless router,
wireless optical cat router, wired router and wired optical cat.
3. It can be used for TV video, voice telephone, network data and
other functional applications.
4. It has a fiber melting disc, which can fix the fiber fusion part
and wind the wire.
5. The expansion module can be installed.
6. It is applicable to shops,well decorated apartment ,ordinary
real.
Main Features
1.High impact resistance material:PC,ABS
2. Safe and full material copper terminals
3.Adjustable din-rail:move ascend and descend
4. Ultra-large space box for moving and easy wiring
5. Flush mounting and surface mounting available.
6.Function of Distribution box:protect MCB and other devices.
7. Application: widely used in low voltage distribution networks
for power supplying of consumers and commercial buildings.
Attention Points
1. When the bottom box is embedded with concrete and poured on
site, the bottom box needs to be supported up and down, left and
right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it
is forbidden to block the threaded hole on the right plate with
cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom
box is 20n. m.
4. It is recommended to install the support panel after the wall is
puttying.
Specifications of JX series, Surface
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| JXP-M 106 | 6way | 178*210*17.5(26) | 177*209*75*0.8 | 6*9 | 4 | 3 | 2 |
| JXP-M 110 | 10way | 250*210*17.5(26) | 249*209*75*0.8 | 6*9 | 6 | 5 | 5 |
| JXP-M 113 | 13way | 304*210*17.5(26) | 303*209*75*0.8 | 6*9 | 6 | 5 | 6 |
| JXP-M 116 | 16way | 358*210*17.5(26) | 357*209*75*0.8 | 6*9 | 8 | 7 | 7 |
| JXP-M118 | 18way | 394*210*17.5(26) | 393*209*75*0.8 | 6*9 | 11 | 10 | 8 |
| JXP-M 121 | 21way | 448*210*17.5(26) | 477*209*75*0.8 | 6*9 | 11 | 10 | 10 |
| JXP-M 232 | 32way | 358*405*17.5(26) | 357*404*75*0.8 | 6*9 | 13 | 12 | 7 |
| JXP-M 242 | 42way | 448*405*17.5(26) | 447*404*75*0.8 | 6*9 | 16 | 15 | 10 |
Workshop Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| JXP-M 106 | 505*200*455 | 0.0460 | 10 | | |
| JXP-M 110 | 505*275*455 | 0.0632 | 10 | 14.66 | |
| JXP-M 113 | 505*325*455 | 0.0747 | 10 | 17.10 | |
| JXP-M 116 | 505*230*385 | 0.0448 | 5 | 9.25 | |
| JXP-M 118 | 505*230*425 | 0.0494 | 5 | 10.20 | |
| JXP-M 121 | 505*230*475 | 0.0552 | 5 | 11.65 | |
| JXP-M 232 | 460*135*420 | 0.0261 | 1 | 4.05 | |
| JXP-M 242 | 505*135*465 | 0.0317 | 1 | 4.75 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
