18 Ways Double Door Metal Base Flush Mounted Electrical Power MCB
Distribution Box
Product Feature
1. Box material: powder coated steel,
2. Cover frame material: 1.2mm powder coated steel
3. Door material: 1.2mm powder coated steel.
4. All plastic parts: without specific flame retardant
5. Pastic can be customized to flame retardant (grade V1~V0 depends
on material choosed).
Plastic parts test result
1. Incandescent wire test at 650℃.
2. Anti-UV test (to reveal plastic anti-ageing performance)
≥250hrs.
3. Xenon arc lamp test ≥250hrs.
4. Hinge operation test ≥10,000 times no break.
Company profile
1. Founded in 2005, it specializes in the production, R & D and
sales of indoor distribution box, multi-media box and power
cabinet.
2. The product design takes safety as the core concept, and has
obtained 33 design patents, 20 utility model patents and 2
invention patents.
3. It has served 1350 leading real estate companies and 1600 panel
builder.
4. In 2015, the sales revenue will exceed 100 million, and the
annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also
gained a certain reputation.
Specifications of MX series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| MXP-A 110 | 10way | 272*240*10(24.7) | 256*210*90*1.0 | 6.4*12 | 6 | 7 | 6 |
| MXP-A 112 | 12way | 308*240*10(24.7) | 292*210*90*1.0 | 6.4*12 | 8 | 9 | 7 |
| MXP-A 114 | 14way | 344*260*10(24.7) | 328*230*90*1.0 | 6.4*12 | 8 | 9 | 8 |
| MXP-A 116 | 16way | 380*260*10(24.7) | 364*230*90*1.0 | 6.4*12 | 10 | 11 | 9 |
| MXP-A 118 | 18way | 416*260*10(24.7) | 400*230*90*1.0 | 6.4*12 | 10 | 11 | 10 |
| MXP-A 120 | 20way | 452*260*10(24.7) | 436*230*90*1.0 | 6.4*12 | 12 | 13 | 11 |
| MXP-A 224 | 24way | 325*460*12(24.7) | 305*420*100*1.2 | 8*12 | 12 | 13 | 7 |
| MXP-A 232 | 32way | 397*460*12(24.7) | 377*420*100*1.2 | 8*12 | 15 | 15 | 9 |
| MXP-A 240 | 40way | 469*460*12(24.7) | 449*420*100*1.2 | 8*12 | 17 | 17 | 11 |

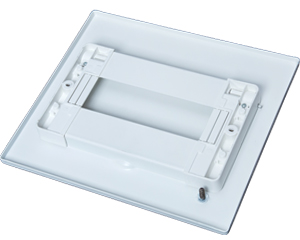

Product Details Demonstration
Application
MX series is used for indoor power distribution mainly for lighting
control for residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical
adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 60%
composition.
3. Stainless earthing bolts with warning label, metal cover also
equiped with earthing bolt.
4. Full metal cover manufactured by integral stretching formation,
with extreme high tensile strength.
5. Box equiped with plastic knockouts as well as plastic wire
clamps.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) |
| mm | m³ | net weight | gross weight |
| MXP-A 110 | 550*260*300 | 0.0429 | 5 | 13.7 | 14.8 |
| MXP-A 112 | 550*260*340 | 0.0487 | 5 | 15.1 | 16.4 |
| MXP-A 114 | 550*280*375 | 0.0578 | 5 | 17 | 18.5 |
| MXP-A 116 | 550*280*410 | 0.0632 | 5 | 18.5 | 20 |
| MXP-A 118 | 440*280*235 | 0.0290 | 2 | 8 | 8.8 |
| MXP-A 120 | 475*280*235 | 0.0313 | 2 | 8.6 | 9.5 |
| MXP-A 224 | 520*170*390 | 0.0345 | 1 | 6 | 6.7 |
| MXP-A 232 | 520*170*460 | 0.0407 | 1 | 7.2 | 7.8 |
| MXP-A 240 | 520*170*530 | 0.0469 | 1 | 8.2 | 9 |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a
MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no
additional charge.
