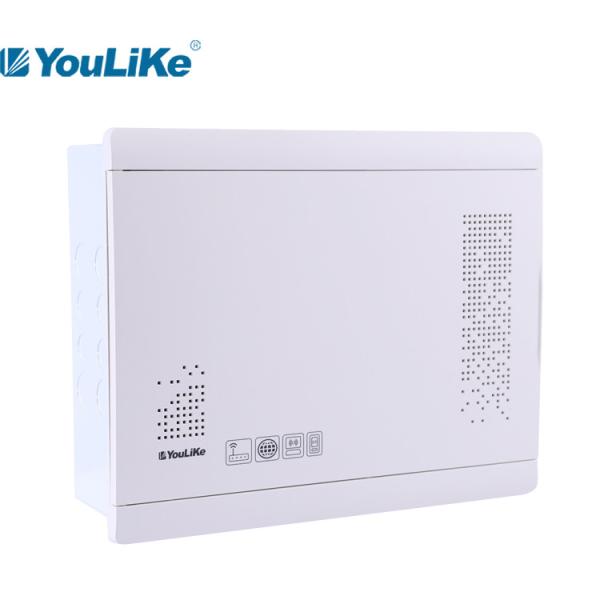

    ABS Cover Waterproof MCB Box , Network Distribution Box IP30 Protection

    Ask Lasest Price
    Brand Name : YOULIKE
    Model Number : DMT-T/G
    Certification : CCC
    Price : 5-50USD
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 400000pcs/month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    ABS Cover Waterproof MCB Box , Network Distribution Box IP30 Protection

    Product Characteristics

    1. Box to be available for powder coated steel, 0.8mm for DMT-T, 1.0mm for DMT-G.

    2. Cover to be available for ABS (DMT-G) and HIPS material (DMT-T).

    3. In case golden color needed, only HIPS available.

    4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.

    5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).


    Plastic parts test result

    1. Incandescent wire test at 650℃.

    2. Anti-UV test (to reveal plastic anti-ageing performance) ≥250hrs.

    3. Xenon arc lamp test ≥250hrs.

    4. Hinge operation test ≥10,000 times no break.


    Specifications of DMT-T/G series, Flush

    ModelCover materialCover sizeBox size

    Max. Module install

    capacity

    Knockouts
    L*H*T (mm)L*W*D*T(mm)one side qty
    DMT-TSHIPS345*270*16(31)325*250*100*0.83U16
    DMT-GSABS325*250*120*1.04U18
    DMT-TMHIPS375*320*16(31)350*300*100*0.84U17
    DMT-GMABS350*300*120*1.04U20
    DMT-TLHIPS425*320*16(31)400*300*100*0.84U19
    DMT-GLABS400*300*120*1.04U22

    Product Details Demonstration

    DMT-T/G series is used for indoor TV, telephone and network distribution.

    #1. ONU mounting bracket is powder coated steel.

    #2. Optical cable tray is used for optical cable wiring isolation from other components.

    #3. PDU is as per CCC standard and optionla for clients in case it is unworkable.

    #4. Reinforced structure design to allow higher tensile strength of plastic cover.

    #5. Module mounting stand is plastic and modules to be fix by screws.


    Application

    Mainly used for indoor TV, telephone and internet distribution for house/apartment usage.


    Packing

    ModelCarton sizeVolume/ctnPcs/ctnCalculated weight(kgs/ctn)
    mmnet weightgross weight
    DMT-TS405*150*3400.020719.58
    DMT-TM440*150*3900.0258114.66
    DMT-TL485*150*3900.0284117.10
    DMT-GS405*170*3400.023419.25
    DMT-GM440*170*3900.0292110.20
    DMT-GL485*170*3900.0322111.65

    Neutral carton packing Our style carton

    Remarks: #1. Both customized color box or neutral box is available.

    #2. In case customized color box is required, there is a MOQ≥1000pcs/each size.

    #3. Customized logo print on product is available with no additional charge.
