Flush Mounting 21 Way MCB Consumer Unit Box Power Distribution Box
Product Specification
1. Box material: powder coated steel
2. Cover frame material : ABS
3. pantel material: both ABS (for white door) and PC material (for
transparent door).
4. protection level: IP40
5. All plastic parts are durable and safe (flame retardant PC).
6. Pastic can be customized to flame retardant (grade V1~V0 depends
on material choosed).
Attention Points
1. When the bottom box is embedded with concrete and poured on
site, the bottom box needs to be supported up and down, left and
right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it
is forbidden to block the threaded hole on the right plate with
cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom
box is 20n. m.
4. It is recommended to install the support panel after the wall is
puttying.
| Model Number | BEP-A 121 |
| Color | white |
| Base Box Size | 444*192*80*0.8mm |
| Cover Size | 466*210*15.5(27.5)mm |
| Rated Frequency | 50-60H |
| Surface Treatment | coated |
| Warranty | 2 years |
| Package | in color box or neutral carton |
| Certificate | CCC.CE |
Specifications of BE series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts |
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty |
| BEP-A 104 | 4way | 160*190*15.5(27.5) | 138*170*80*0.8 | 6*10 | 4 | 5 | 2 |
| BEP-A 110 | 10way | 268*210*15.5(27.5) | 246*192*80*0.8 | 6*10 | 8 | 7 | 5 |
| BEP-A 113 | 13way | 322*210*15.5(27.5) | 300*192*80*0.8 | 6*10 | 8 | 7 | 6 |
| BEP-A 116 | 16way | 376*210*15.5(27.5) | 354*192*80*0.8 | 6*10 | 8 | 9 | 7 |
| BEP-A 118 | 18way | 412*210*15.5(27.5) | 390*192*80*0.8 | 6*10 | 11 | 10 | 8 |
| BEP-A 121 | 21way | 466*210*15.5(27.5) | 444*192*80*0.8 | 6*10 | 11 | 10 | 10 |
| BEP-A 124 | 24way | 520*250*15.5(27.5) | 498*230*90*1.0 | 6*10 | 13 | 12 | 8 |
| BEP-A 226 | 26way | 322*405*17.5(27.8) | 300*380*90*1.0 | 6*10 | 13 | 12 | 6 |
| BEP-A 232 | 32way | 375*405*17.5(27.8) | 354*380*90*1.0 | 6.4*12 | 16 | 15 | 7 |
| BEP-A 242 | 42way | 466*405*17.5(27.8) | 444*380*90*1.0 | 6.4*12 | 18 | 17 | 10 |
| BEP-A 348 | 48way | 393*650*17.5(29) | 363*620*100*1.2 | 6.4*12 | 2*10 | 2*11 | 8 |
| BEP-A 363 | 63way | 483*650*17.5(29.5) | 453*620*100*1.2 | 8*12 | 2*12 | 2*13 | 12 |

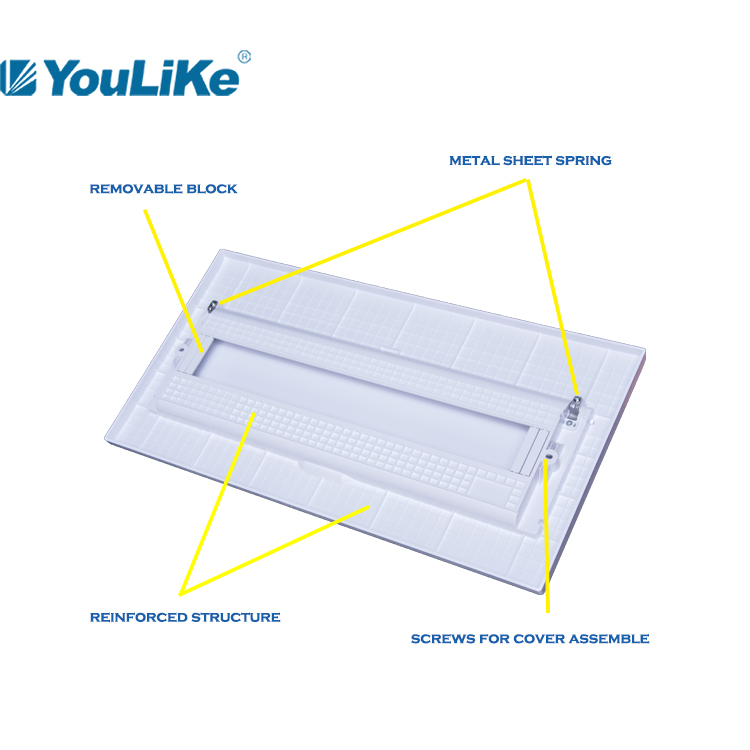

Details Image
About Us
Production Capacity:
1. 30,000 square meters production center, including metallic
process line, powder coating line, plastic injection, assemble
line, customization center and etc.
2. 4,000,000 pieces annual output.
3. Automatic box process line, to ensure quality stablility and
production efficience.
Market service:
1. year service for over 1,800 panel builders and 2,000 real estate
companies.
2. Over 500 fully skilled support team, 22 national branches.
3. Stable delivery time all year long as 15days.
R&D ability:
1. Over 65 national patents, to ensure every single product is 100%
original.
2. Product update and new product issue in each 1-2 years.
